BRD
EXTEND INTEGRATED

DESIGNED BY BO RAMLYNG
PRODUCED BY ZARP DANMARK
2012

RETAIL: ECOPHON

–
BRD EXTEND INTEGRATED lamp heralds a new chapter in lighting solutions, where all technical components are gathered in a single profile, offering a flexible, advanced solution with the very best acoustic properties.

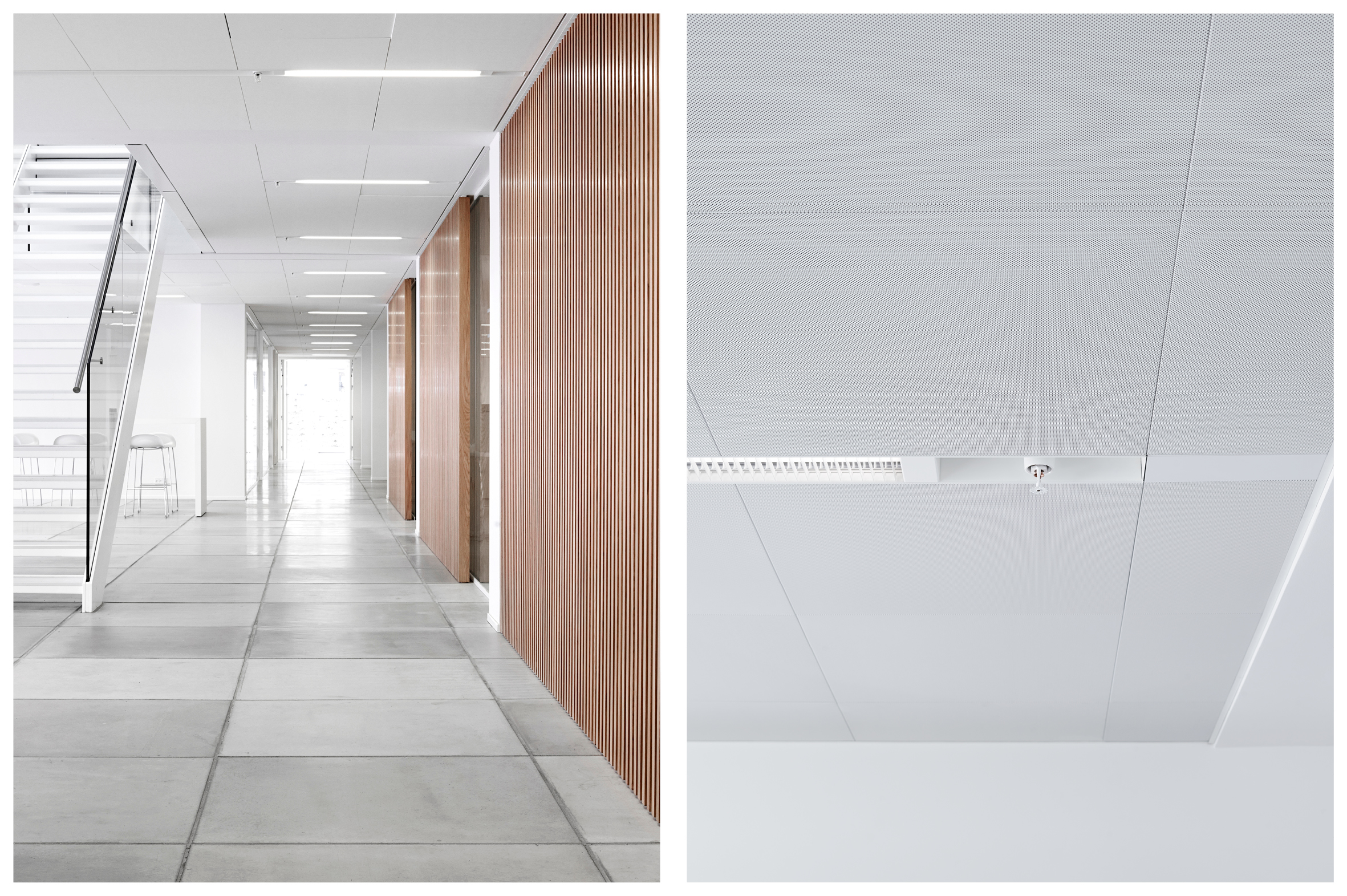

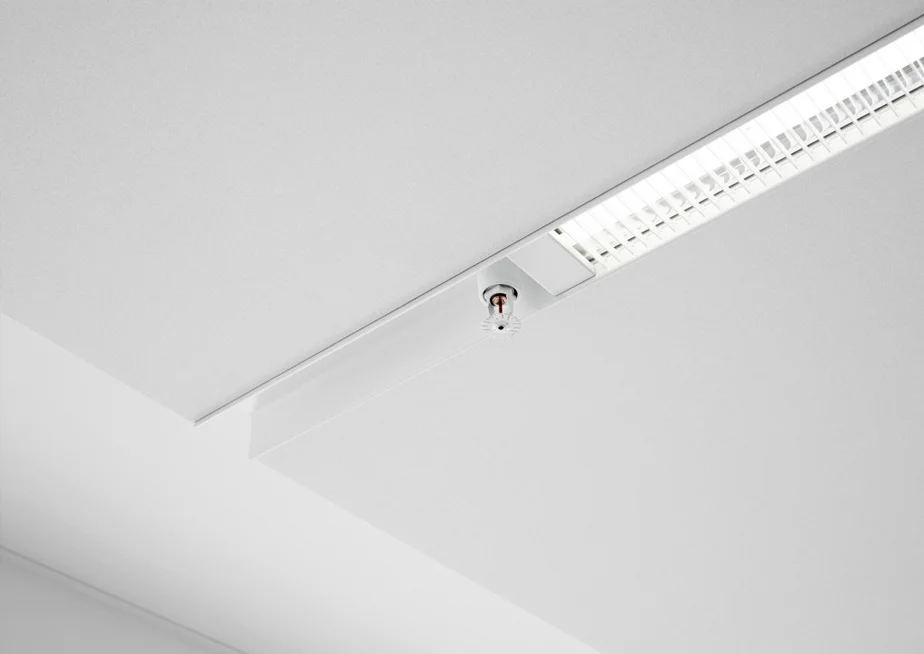

A specially extruded aluminium U-profile integrates the light fitting, sprinklers, movement sensors, smoke detectors etc. keeping the ceiling surface clean and clear, with easy access to the concealed installations above the ceiling.

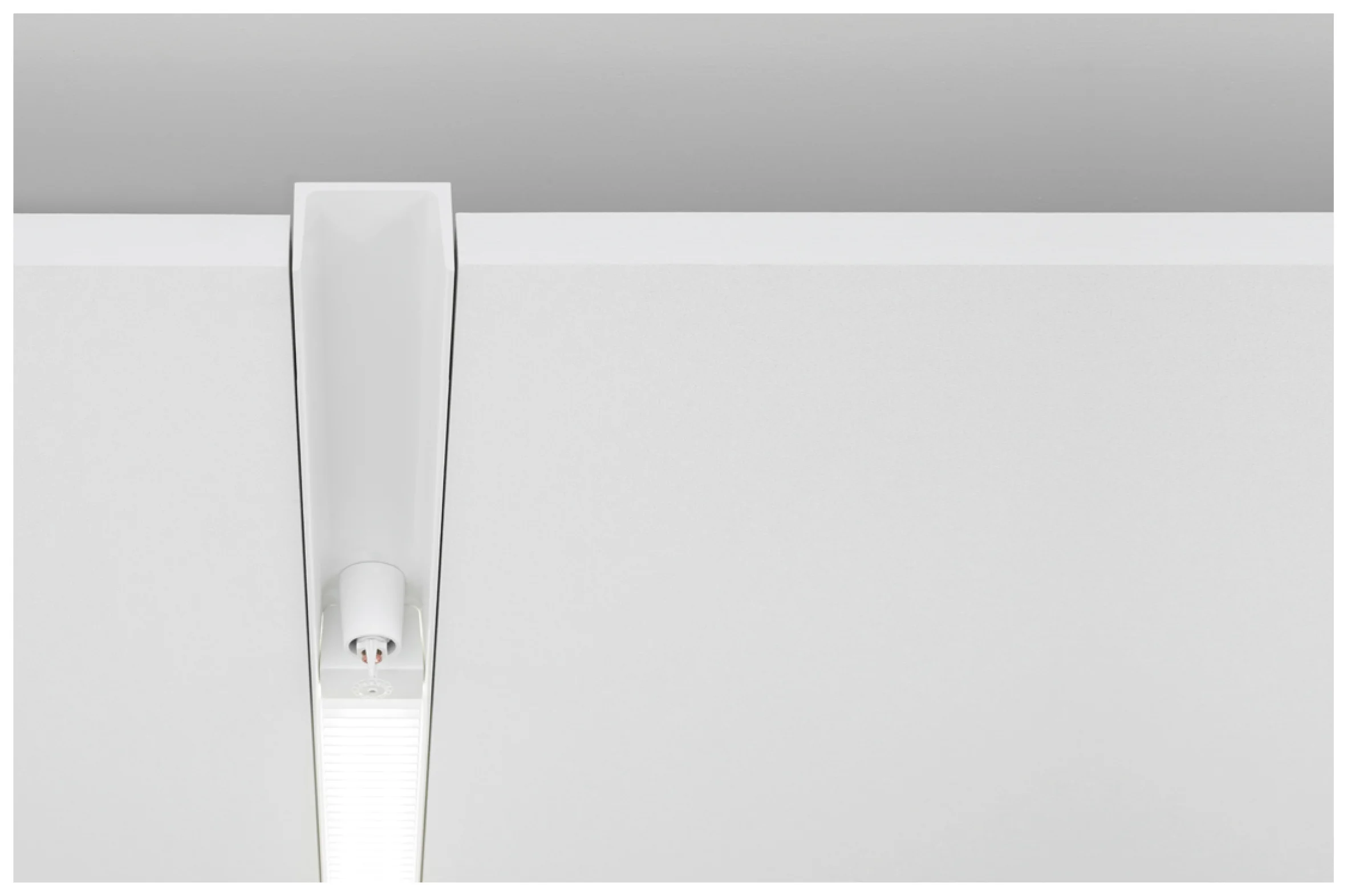

The U-profile supports the entire ceiling system. The profile frame is designed to fit the Ecophon Solo rectangle panel in sizes up to 2400x1200x40 mm. The light fitting in its standard format is composed of two rails with reflectors and transverse louvre shades. Alternatively, it can be supplied with LED strips.

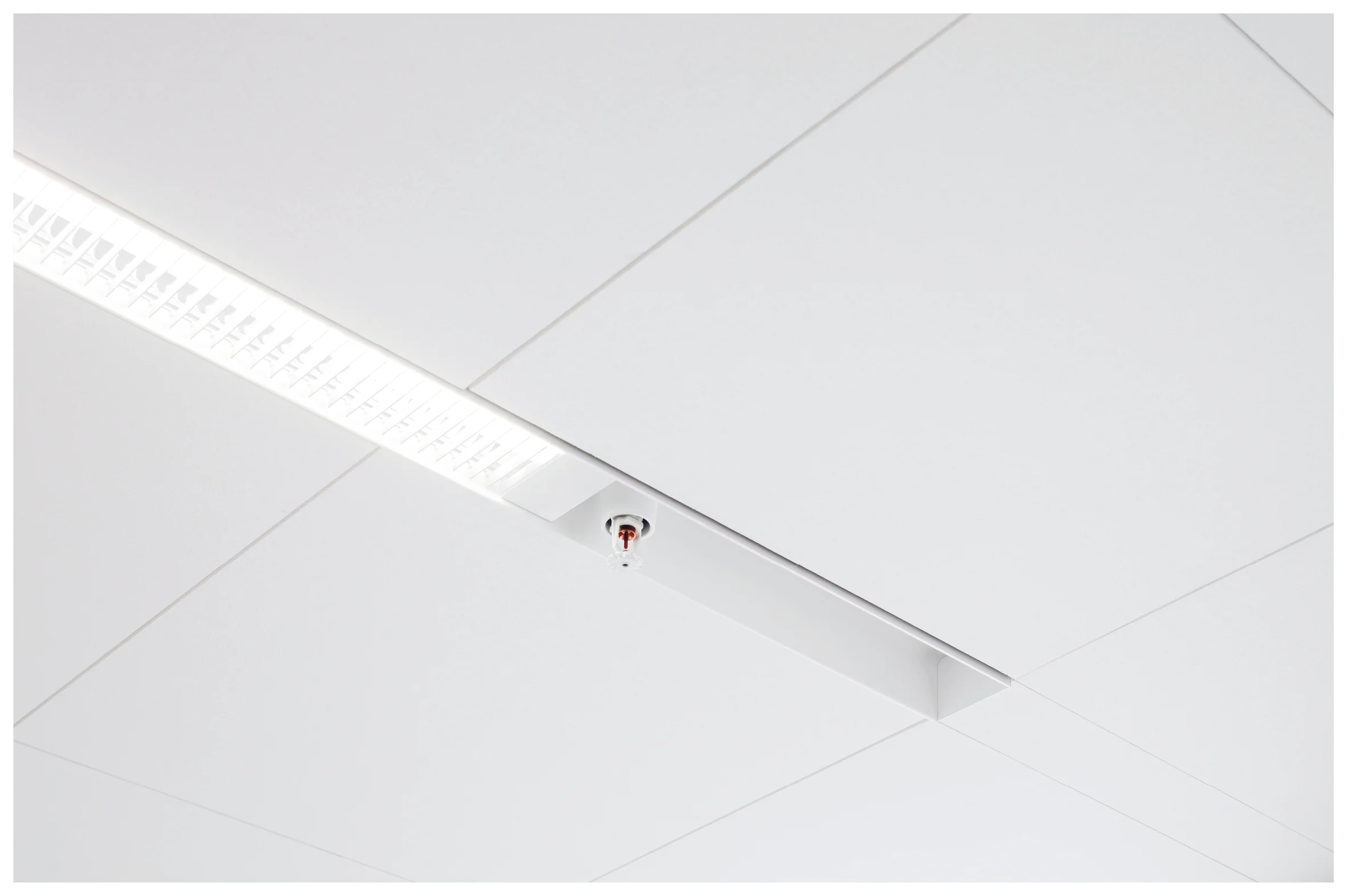

Installation is based on the “plug and play” principle. High and low voltage installations can be mounted in the ceiling using junction boxes and sprinklers with flexible hoses so that the U-profile construction can enclose all installations before the panels are fitted. A specially-developed coupling ensures that sprinklers can be dismantled after installation, under pressure.

The U-profile comes in lengths of 800 to 6100 mm. Spots or other forms of lighting can be added as required.

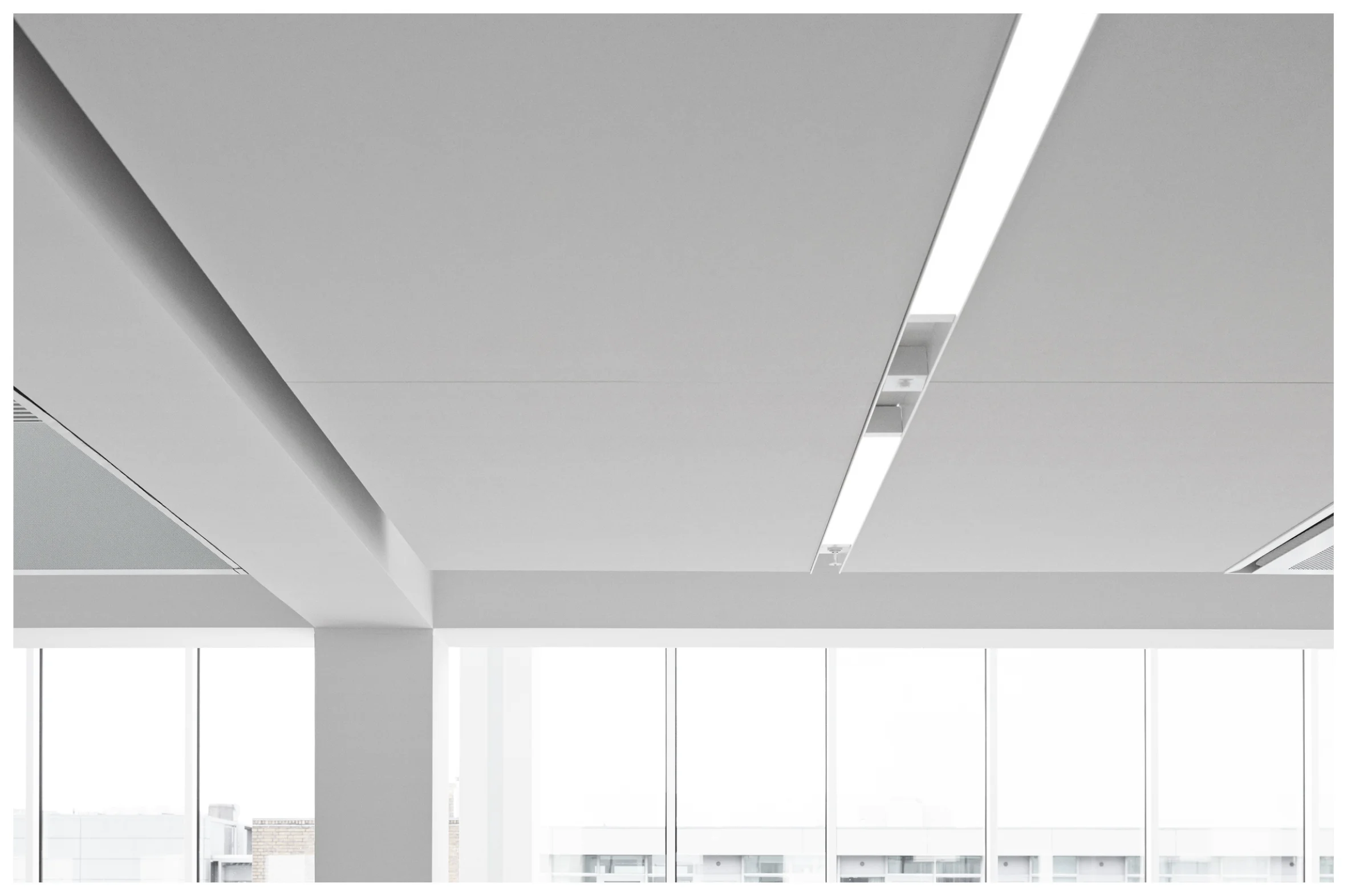

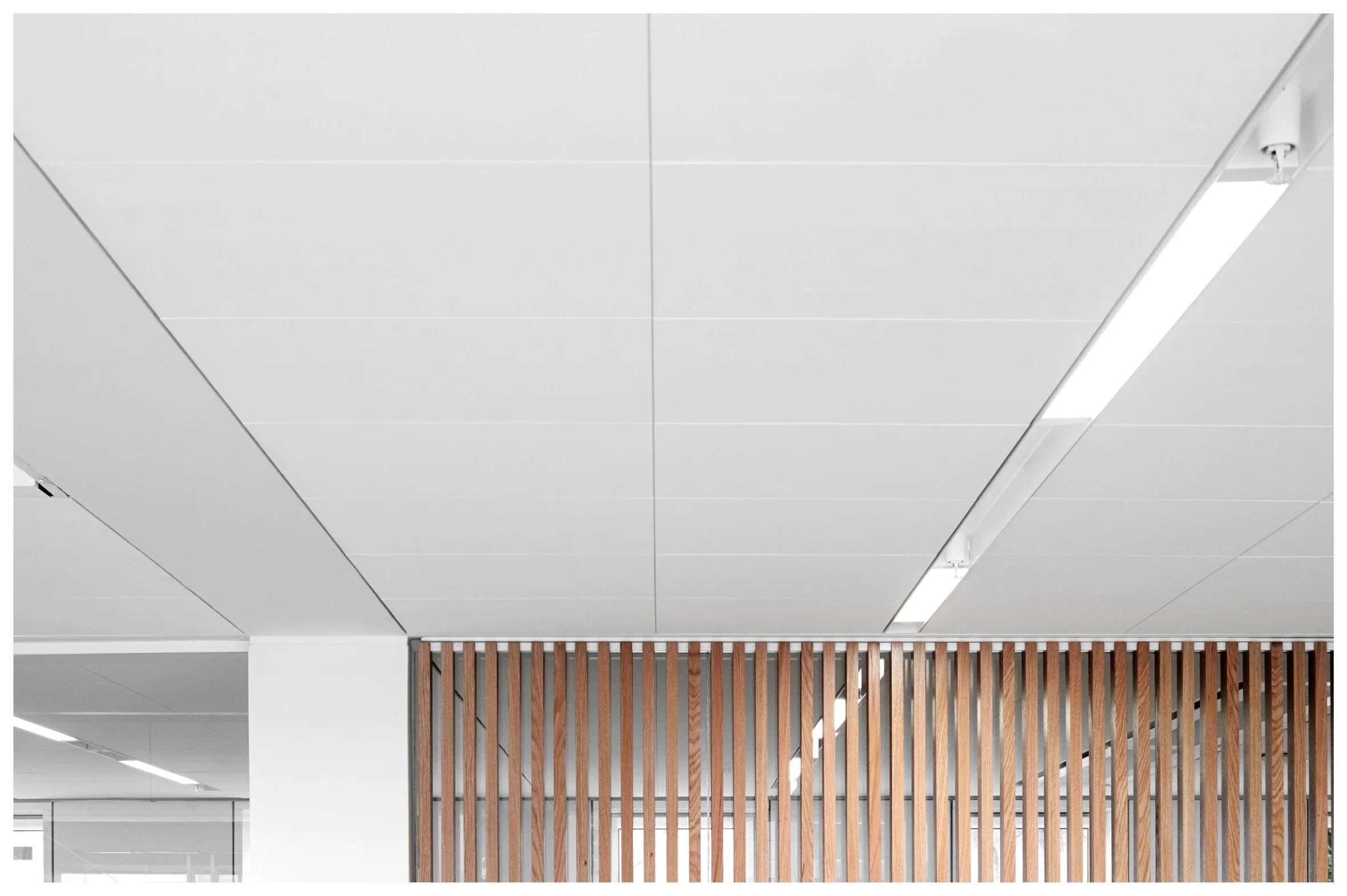

EXTEND also comes as a suspended lamp. The two types can be combined to emphasize the linear identity of a building, whether used in open plan offices spaces with integrated fittings, or in more intimate rooms with suspended lights.
